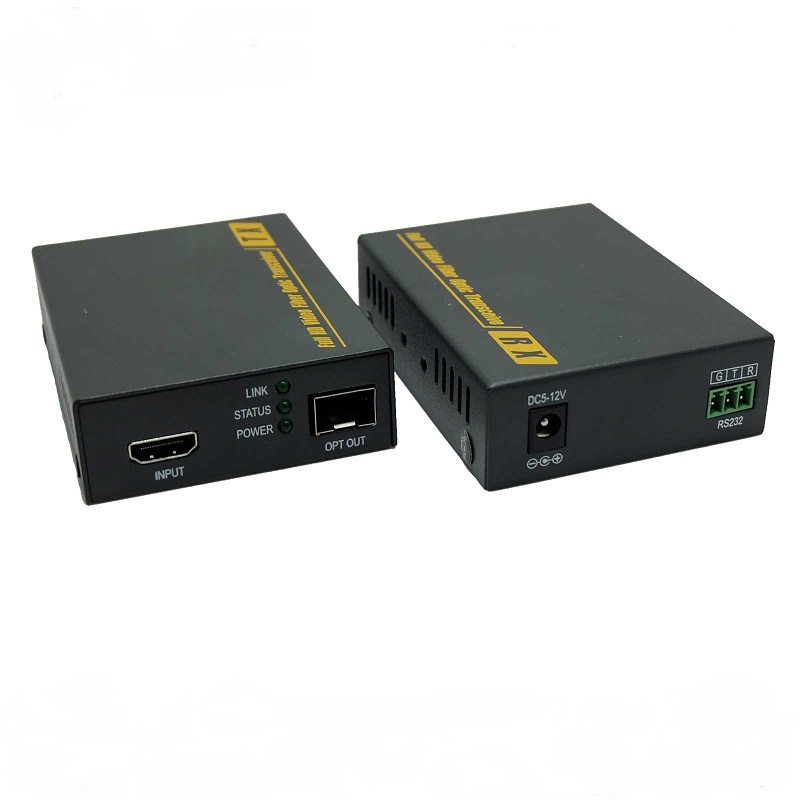

Multimode OM3 300 Meters HDMI 2.0 over Fiber Optic Extender
Model: FSN-HF200
The FSN-HF200 HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over fiber optic cable, it supports high resolution up to 4K*2K; The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Description
Features
- Uncompressed, no delay transmits HDMI video signals up to 300-500m over fiber optic cable;
- Support video resolution up to 3840*2160@60Hz,1920*1200@60hz,1920*1080P@60Hz, 3D signal;
- Double fiber cable pass-through transmits HDCP/EDID ;
- Single fiber support copy EDID, but can’t pass HDCP;
- Compliance with HDMI 2.0 and HDCP 2.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Technical Indexes
Video Standards: HDMI 2.0; HDCP 2.2
Maximum pixel clock :297MHz
Maximum data rate: 18Gbps
Resolution range Up to: 3840X2160@60Hz
Connector Female: HDMI type A
Impedance: 100Ω
HDMI Cable Range: <5Meter (Resolution up to 3840X2160@60Hz)
Optical fiber Interface: SFP model – LC connector
Fiber type: Multi-mode
Wavelength: Multi-mode 1310nm
Interface bandwidth: 18Gbps
Transmission distance: Double OM3 fiber: 300-500M
The power adapter: DC 5V~12V
Power dissipation: MAX 6W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension (LxDxH): 94.5*73*26mm
Application
Technical Indexes
Standards: HDMI 1.3; HDCP 1.2
Compressed format: H.264
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution Max: 1920X1080p@60Hz
Connector: HDMI-A
Impedance: 100Ω
Interface: 3.5mm earphone seat
Signal direction: Unidirectional
Signal type: Digital
IR frequency: 20-60kHz
Interface: RJ45
Transmission distance: CAT6—200M
Power supply: POE power supply 5V IN
Power dissipation: MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension: 95.25*71.2*26.6mm
The warranty: 1 year free warranty
Panel Transmitter
Receiver
HDMI IN/HDMI OUT: HDMI signal input/output
UTP: Ethernet RJ45 interface
IR IN / IR OUT: IR input / IR output
RESET: Press for 5 second to restore system setting to factory default
LED indicator: Description
PWR: Power indicator, ON: power is normal
LINK: Link status indicator, ON: link is normal
STATUS: Video signal connection indicator, Flashing slowly: system run normally, Flashing quickly: system communicate
