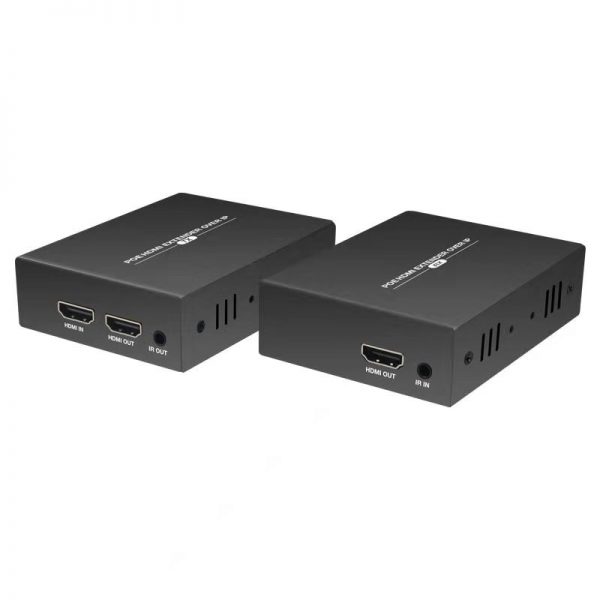

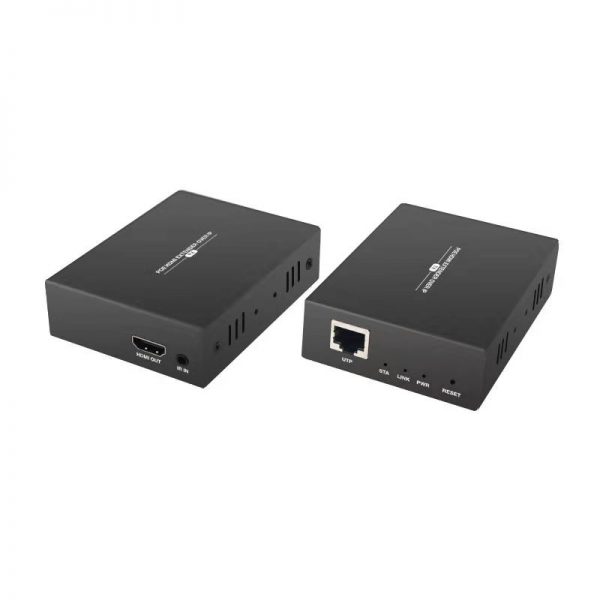

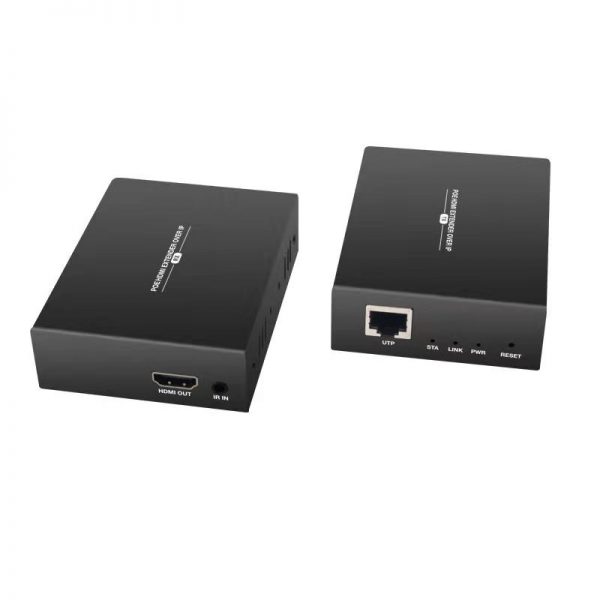

HDMI POE Extender over IP up to 200 Meters
Model: FSN-HDMI-P12
The FSN-HDMI-P12 HDMI extender adopts standard Ethernet TCP/IP protocol, transmit HD video and audio over single cat6 cable, and support One-to-many applications with POE switches. The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.
Description
Features
• Transmits HDMI video and audio signals up to 200M over a single
• CAT6 cable;
• Support video resolution max up to 1920*1080p@60Hz;
• Support over TCP/IP protocol, One-to-many applications with POE switches;
• Compliance with HDMI 1.3 and HDCP 1.2 standard;
• Support for external IR expansion;
• Support for POE power supply;
• High compatibility, can auto-match source and display device;
• Built-in automatic adjustment systems, makes the image smooth, clear and stable;
• Built-in ESD protection system;
• Simple to install, plug and play;

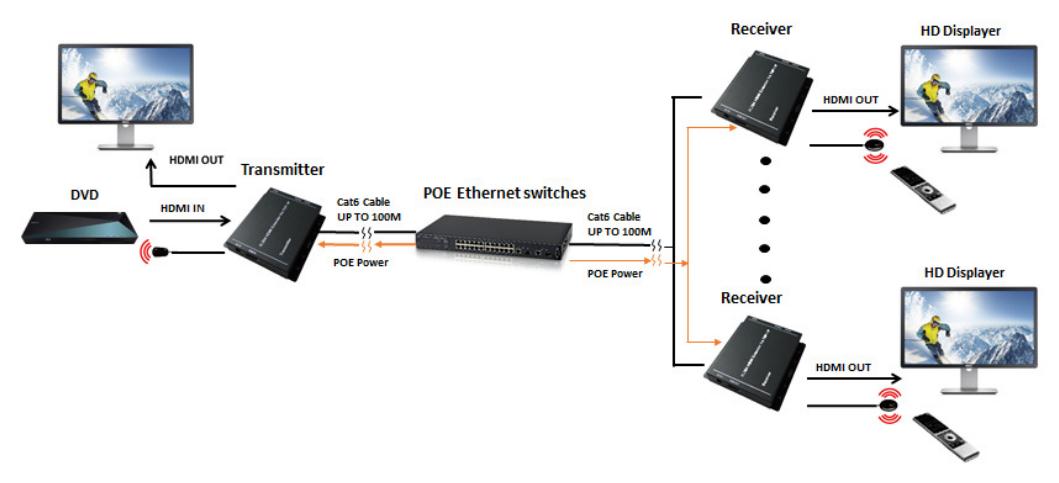

Application
Technical Indexes
Standards: HDMI 1.3; HDCP 1.2
Compressed format: H.264
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution Max: 1920X1080p@60Hz
Connector: HDMI-A
Impedance: 100Ω
Interface: 3.5mm earphone seat
Signal direction: Unidirectional
Signal type: Digital
IR frequency: 20-60kHz
Interface: RJ45
Transmission distance: CAT6—200M
Power supply: POE power supply 5V IN
Power dissipation: MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension: 95.25*71.2*26.6mm
The warranty: 1 year free warranty

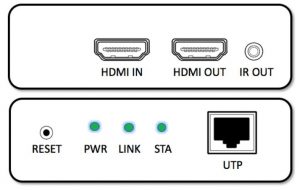

Panel Transmitter
Receiver
HDMI IN/HDMI OUT: HDMI signal input/output
UTP: Ethernet RJ45 interface
IR IN / IR OUT: IR input / IR output
RESET: Press for 5 second to restore system setting to factory default
LED indicator: Description
PWR: Power indicator, ON: power is normal
LINK: Link status indicator, ON: link is normal
STATUS: Video signal connection indicator, Flashing slowly: system run normally, Flashing quickly: system communicate
