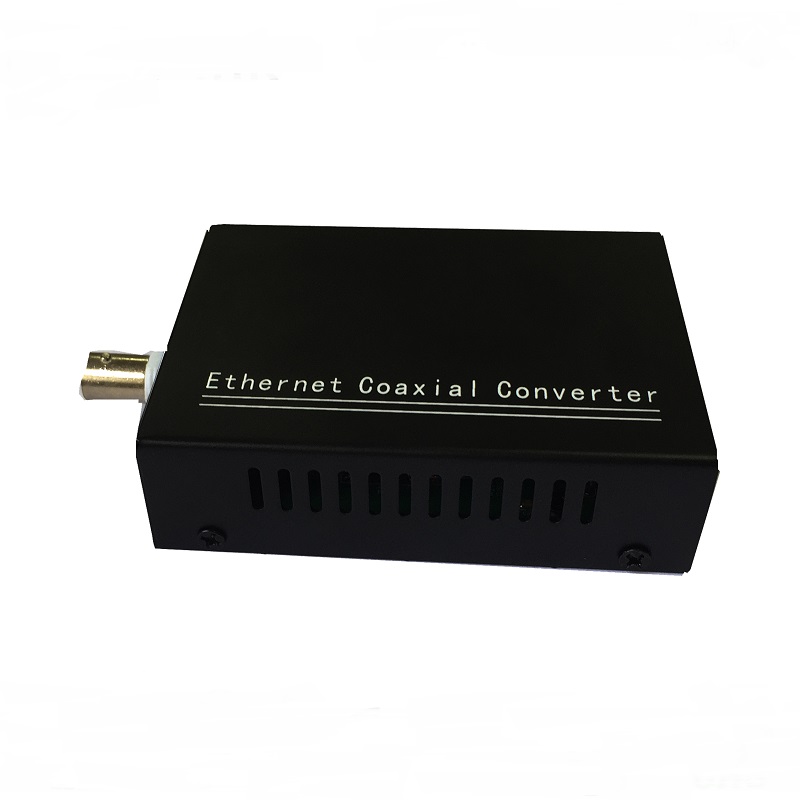

Ethernet Over Coax Media Converter (Coaxial Cable to Ethernet Converter)
Model: FSN-EC1100
The Ethernet over Coax Media Converter provides a quick replacement and smooth migration solution from an existing analog coax system to a full digital system. This unit is ideal for extending the distance and signal conversion and, because the converter allows the transmission of Ethernet format data using coaxial cable instead of new wire, it also saves wiring costs.
The converter offers plug-and-play functionality, with no software configuration required, and is fully compliant with multiple network protocols. Moreover, the rich diagnostic LEDs on the front panel provide the operating status of individual ports as well as the whole system.
Description
Features
- Networking: Support over 8 pieces IP cameras, control, alarm devices over single coaxial cable.
- Transmission Span: The maximum transmission span is 2,000 meters. With such a long span, it helps to simplify cable installation.
- The maximum transmission speed is 30Mbps@2,000meters.
- High performance: Support multiple HD video streams over single coaxial cable.
- Flexibility: Easy to add new nodes into system without re-installing or modifying any devices under use.
- Safety Ability: Support AES-128 Safety with password. Support manufacturer and user checking the code, changing the connection password in real time.
- Easy migration from analog to IP system with existing coaxial, power line, phone line and twisted pair cable
- Automatically recognize the input resolution of 720p and 1080p
- Low power dissipation, wide voltage input 5-12V，easy installation
Technical Indexes
| Model | FSN-EC1100 |
| Standards | IEEE802.3 |
| IEEE802.3u | |
| IEEE802.3x | |
| TCP/IP | |
| Technology | IEEE 1901 and HOMEPLUG @ AV2 technology |
| Ports: 10/100Base-TX | 1 RJ-45, Auto-negotiation and Auto-MDI/MDI-X |
| Ports: Coaxial | 1 BNC, female connector |
| Cabling | Coaxial cable |
| Data rate | 10/100Mpbs |

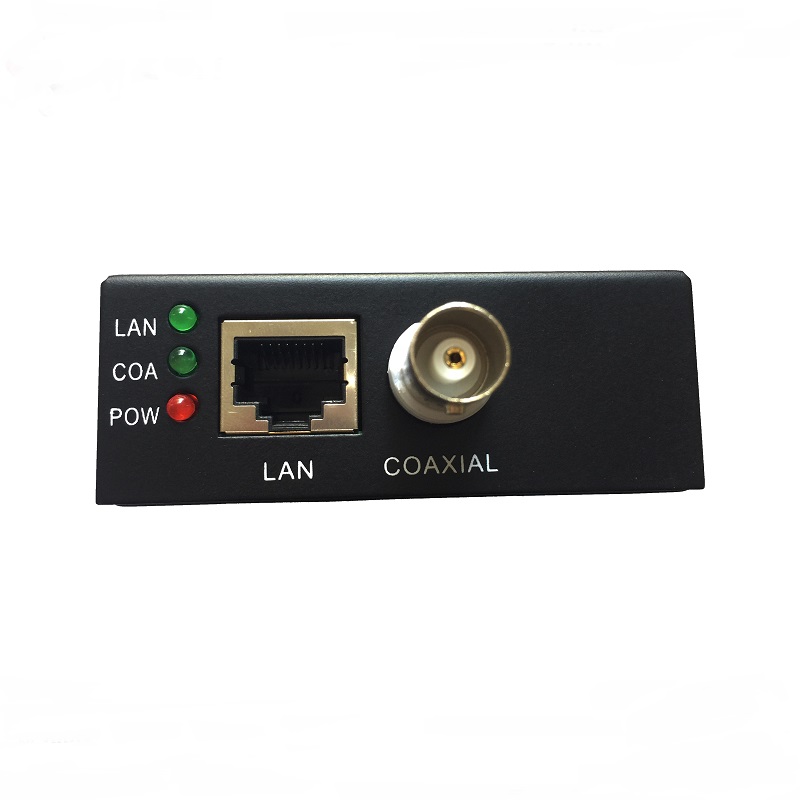

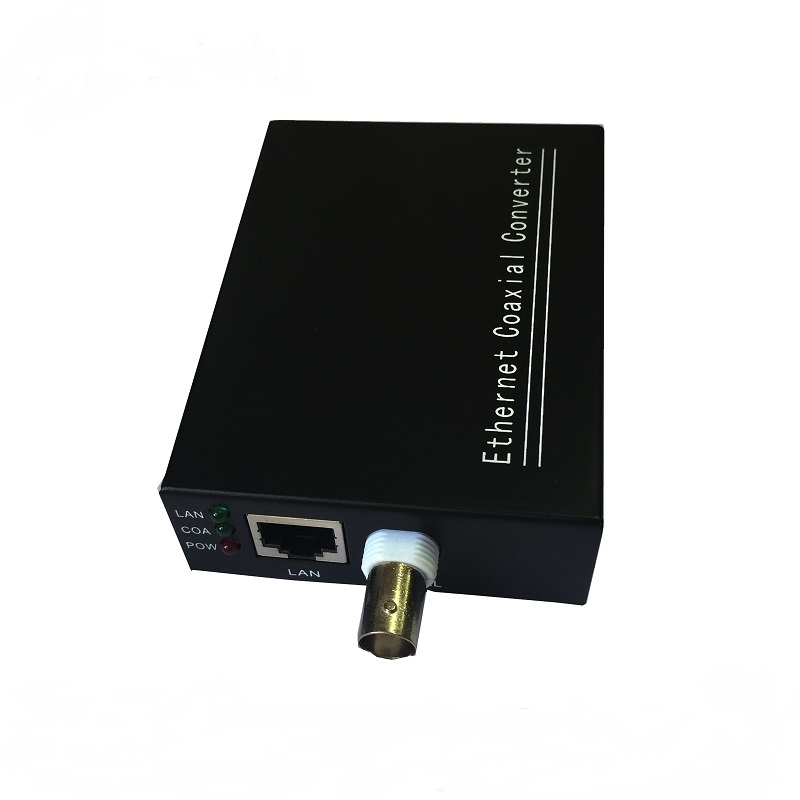

| LED Light | Coaxial, LAN, PWR |
| Power Consumption | Less than 1.6W |
| Performance Specification | Store-forward |
| Distance | 2000 meters |

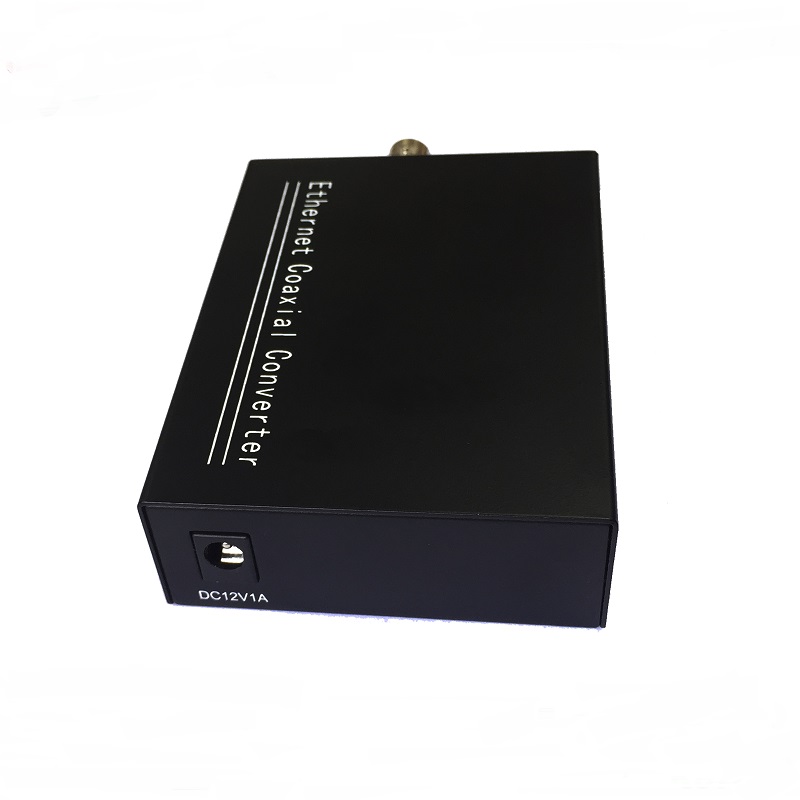

| Power Supply | 12VDC |
| Weight | 0.6KG |
| Dimension (LxWxH) | 90 × 70 × 30mm |
| MTBF | > 50,000 hrs |
| Operating | Temperature: 0ºC~50ºC |
| Relative Humidity: 5%~90% (non-condensing) | |
| Storage | Temperature: -20ºC~70ºC |
| Relative Humidity: 5%~90% (non-condensing) | |
| Safety | CE/FCC/RoHs |
| Warranty | One year |

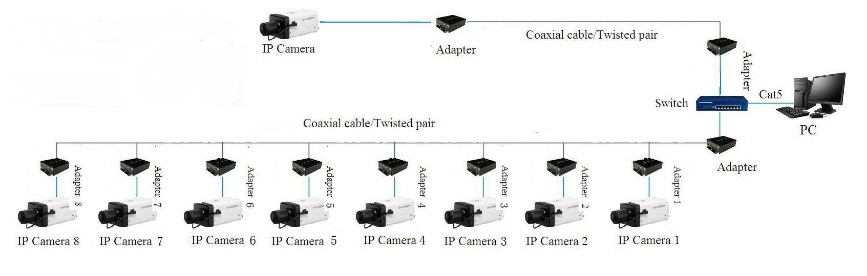

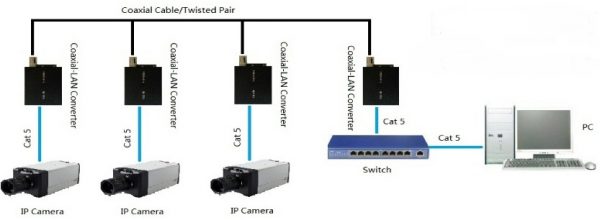

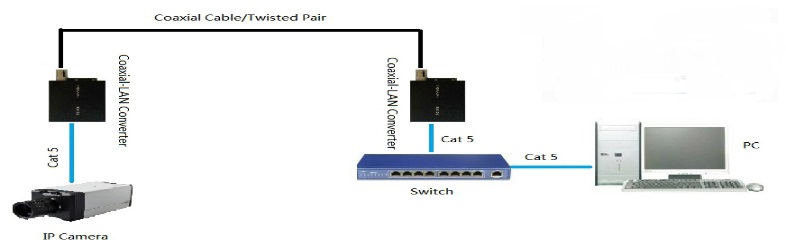

Application
Technical Indexes
Standards: HDMI 1.3; HDCP 1.2
Compressed format: H.264
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution Max: 1920X1080p@60Hz
Connector: HDMI-A
Impedance: 100Ω
Interface: 3.5mm earphone seat
Signal direction: Unidirectional
Signal type: Digital
IR frequency: 20-60kHz
Interface: RJ45
Transmission distance: CAT6—200M
Power supply: POE power supply 5V IN
Power dissipation: MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension: 95.25*71.2*26.6mm
The warranty: 1 year free warranty
Panel Transmitter
Receiver
HDMI IN/HDMI OUT: HDMI signal input/output
UTP: Ethernet RJ45 interface
IR IN / IR OUT: IR input / IR output
RESET: Press for 5 second to restore system setting to factory default
LED indicator: Description
PWR: Power indicator, ON: power is normal
LINK: Link status indicator, ON: link is normal
STATUS: Video signal connection indicator, Flashing slowly: system run normally, Flashing quickly: system communicate
