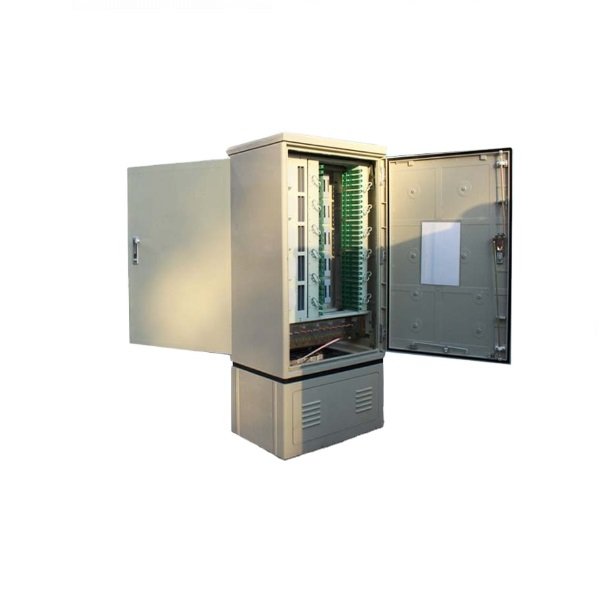

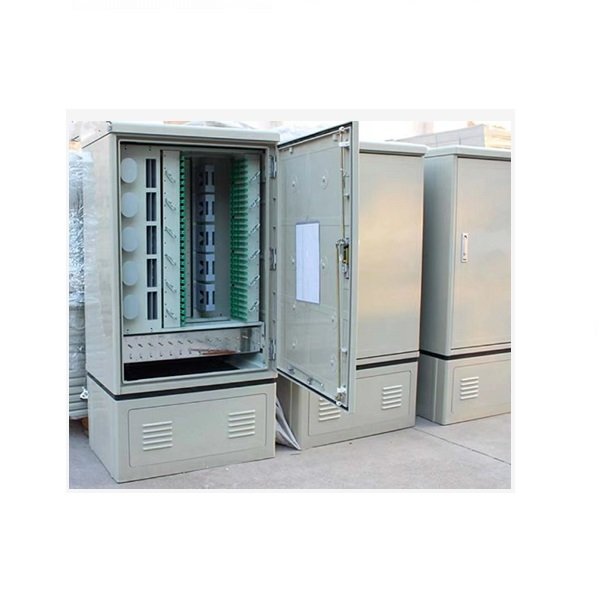

576 Core SMC Material Optic Distribution Cabinet(Model: FSN-N504)
Configuration:
|
Product Name
|
576 core fiber optic cabinets
|
|
Material
|
SMC
|
|
Size
|
1450*750*520mm
|
|
Installation
|
Ground-mounted/Wall-mounted
|
|
Capacity
|
576 Core
|
|
Color
|
Grey
|
|
Protection:
|
IP55
|
|
Certification
|
Ios9001
|
Description
Features:
* SMC material used ensures the body strong and light.
* Embedded the wall design for outdoor uses.
* Protection Level: IP55.
* Easy installations: Ready for wall mount – installation kits provided
* Adapter slots used – No screws and tools needed for installing adapters.
* Ready for splitters: designed space for adding splitters.
* Space saving! Double-layer design for easier installation and maintenances:
* MAX.tray:56 pcs(672 cores),12 core per tray.
* Lower layer for splitters and over length fiber storage.
* Upper layer for splicing, cross-connecting and fiber distribution.
* Accommodates both cable glands as well as tie-wraps
* Lock provided for extra security
* Empty box,without tray
Application
Technical Indexes
Standards: HDMI 1.3; HDCP 1.2
Compressed format: H.264
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution Max: 1920X1080p@60Hz
Connector: HDMI-A
Impedance: 100Ω
Interface: 3.5mm earphone seat
Signal direction: Unidirectional
Signal type: Digital
IR frequency: 20-60kHz
Interface: RJ45
Transmission distance: CAT6—200M
Power supply: POE power supply 5V IN
Power dissipation: MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension: 95.25*71.2*26.6mm
The warranty: 1 year free warranty
Panel Transmitter
Receiver
HDMI IN/HDMI OUT: HDMI signal input/output
UTP: Ethernet RJ45 interface
IR IN / IR OUT: IR input / IR output
RESET: Press for 5 second to restore system setting to factory default
LED indicator: Description
PWR: Power indicator, ON: power is normal
LINK: Link status indicator, ON: link is normal
STATUS: Video signal connection indicator, Flashing slowly: system run normally, Flashing quickly: system communicate
