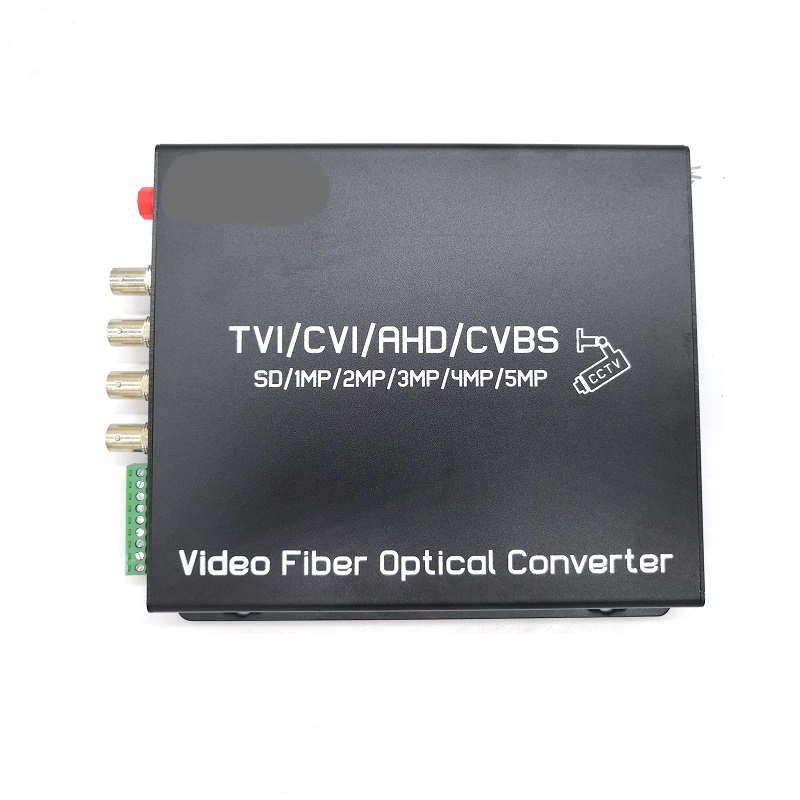

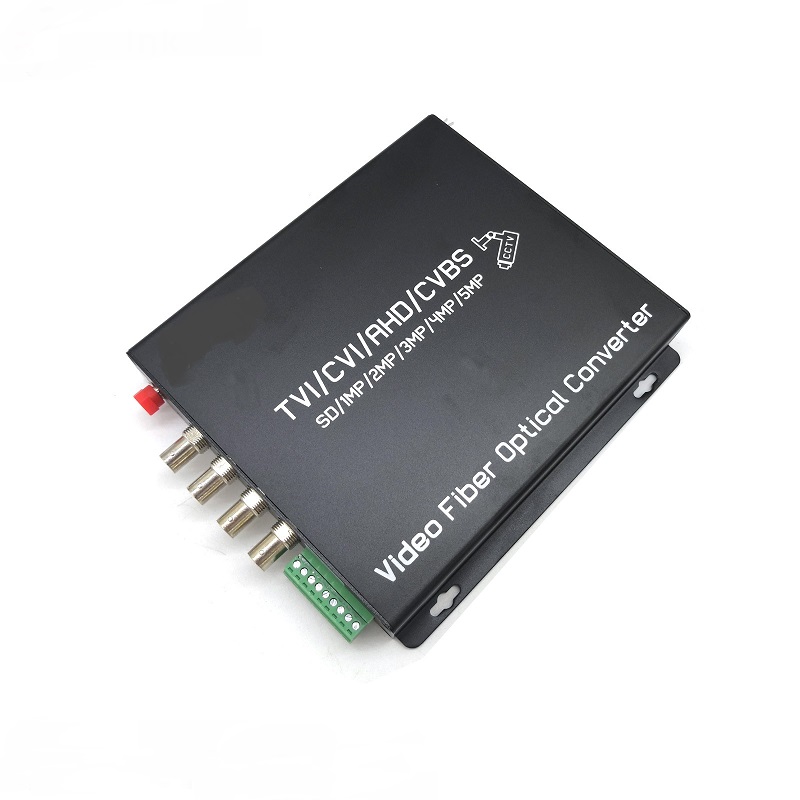

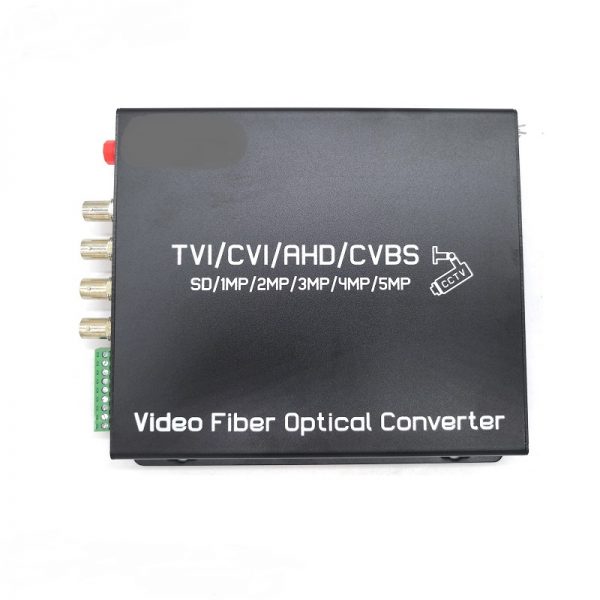

4Ch 5MP HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter
Model: FSN-5MP-4V
HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD, HDCVI, HD-TVI or CVBS composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers. 4Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 4 channel AHD, HD-CVI, HD-TVI or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports 5MP 4MP 3MP 1080P 720P Camera.
Description
Features
- Non-compression coding technology
- Automatically identify formats of input videos.
- Support transmission of combined AHD, HDCVI, HD-TVI or CVBS signal and controlling PTZ data
- RS485 simultaneously though fiber optical cable
- Support 5MP 4MP 3MP 1080P 720P Camera
- Through LED indicators to inform its functional mode
- Industrial wide range of operational temperature
- Plug and play, simple installation.
- Wide-range temperature application: -15ºC ~65ºC
Technical Indexes
| Optical Fiber | ||
| Wavelength | WDM:1310nm/1550nm | |
| Output Power | -8~3dBm | |
| Optic fiber | 50/125u multimode，62.5/125u multimode，9/125u single mode | |
| Rx sensitivity | -26dBm | |
| Optical connector | FC (default), ST or SC (optional) | |
| Transmission Distance | 0~550M (MM) / 0~80KM (SM) (Default distance is 20Km) | |
| Video | ||
| Number of Channels | 4 | |
| Input/output impedance | 75 Ohm (unbalance) | |
| Standard video input/output voltage | 1.0Vp-p | |
| Video Bandwidth | 50MHz | |
| Sampling Bandwidth | 8bit | |
| Sampling Frequency | 108MHz | |
| Signal to noise ratio | >67dB | |
| Rise and Fall time | <0.8ns | |
| Optical Signal Intrinsic Jitter | <0.2 UI | |
| Differential Gain | < ±1.5% | |
| Differential Phase | < ±1° | |
| Connector | BNC | |
| Supporting video | 5MP 4MP 3MP 1080P 720P Camera | |
| PTZ Data | ||
| Protocol | Default :RS485 (RS232/RS422 Optional) | |
| Number of channels | 1 | |
| Connector | 3pins Terminal Blocks | |
| Data Rate | 0-200Kbps | |
| Directions | Default :Simplex from Rx to Tx (BIDI duplex optional) | |
| Environmental | ||
| Operating Temperature: | -15°C to 65°C (5°F to 149°F) | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | |
| Relative Humidity: | 5% to 95% non-condensing | |
| MTBF | > 100,000 hrs | |
| Electrical and Mechanical | ||
| Input Power: | DC5V 2A | |
| Power Consumption: | ≤6W | |

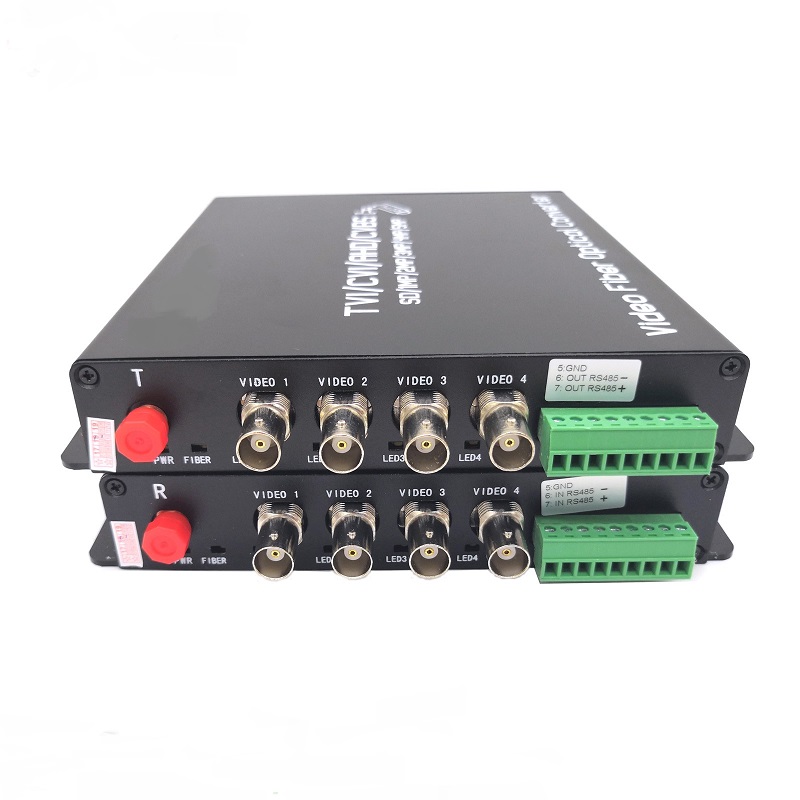

| LED Indicators: | ||
| Fiber | Fiber Status | |
| Video | LED1, LED2, LED3, LED4 | |
| Data | Data status | |
| PWR | Power Status | |
| Dimensions (WxDxH): | 167 x 172 x 28 mm | |
| Weight: | 1.5KG | |
| Casing: | Metal Case | |
| Mounting Options: | Wall-mount/Rack-mount | |
| Regulatory Approvals | ||
| ISO9001 | ||
| CE, RoHS and FCC | ||
