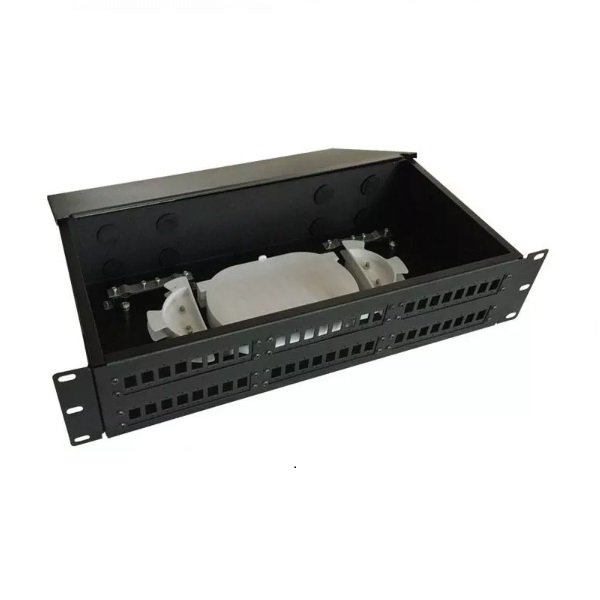

19″ 2U Rack Mounted 48 Core SC/ST/FC/LC Sliding Fiber Patch Panel(FSN-F407)
Configuration:
| Model | Capacity | Height | Dimension(mm) | Weight(Kg) |
| FSN-F407 | 48 | 2U | 485*200*88mm | 5 |
Description
Features:
- Standard size, light weight and reasonable structure
- Slide out drawer for easy cable management
- FC, SC, ST, LC … adapter patch panel for option, easy to replace
- Front access panel design for easy operation
- Suitable for 19’’standard optic distribution cabinets
- capacity 48 fibers, two splice trays of 24 fibers
- 4 fiber cable entry ports at rear side
- White or black color
- Material: Cold-roll steel
Application
Technical Indexes
Standards: HDMI 1.3; HDCP 1.2
Compressed format: H.264
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution Max: 1920X1080p@60Hz
Connector: HDMI-A
Impedance: 100Ω
Interface: 3.5mm earphone seat
Signal direction: Unidirectional
Signal type: Digital
IR frequency: 20-60kHz
Interface: RJ45
Transmission distance: CAT6—200M
Power supply: POE power supply 5V IN
Power dissipation: MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension: 95.25*71.2*26.6mm
The warranty: 1 year free warranty
Panel Transmitter
Receiver
HDMI IN/HDMI OUT: HDMI signal input/output
UTP: Ethernet RJ45 interface
IR IN / IR OUT: IR input / IR output
RESET: Press for 5 second to restore system setting to factory default
LED indicator: Description
PWR: Power indicator, ON: power is normal
LINK: Link status indicator, ON: link is normal
STATUS: Video signal connection indicator, Flashing slowly: system run normally, Flashing quickly: system communicate
