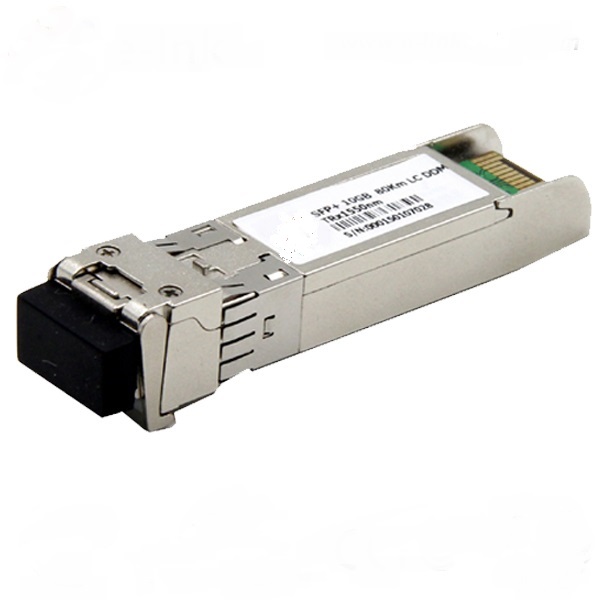

10G Single Mode 13100nm 10km Optical 10G SFP+ Module
Model: FSN-SFP-10G-LR
This 1310 nm DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km.
The SFP+ 10km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.
Technical Indexes
| Unit | Values | |
| Operating Reach | m | 10K |
| Transmit | ||
| Center wavelength (range) | nm | 1260 -1355 |
| Side Mode Suppression Ratio (min) | dB | 30 |
| Launched power | ||
| – maximum | dBm | +0.5 |
| – minimum | dBm | -8.2 Notes1 |
| – OMA | dBm | -5.2 |
| – OMA-TDP (min) | dBm | -6.2 |
| Transmitter and dispersion penalty | dB | 0 Notes4 |
| Average launch power of OFF transmitter (max) | dBm | -30 |
| Extinction ratio (min) | dB | 3.5 Notes2 |
| RIN12 OMA (max) | dB/Hz | -128 |
| Optical Return Loss Tolerance (min) | dB | 12 |
| Receiver | ||
| Center wavelength (range) | nm | 1260-1355 |
| Receive overload (max) in average power1 | dBm | 0.5 |
| Receive sensitivity (min) in average power1 | dBm | -14.4 Notes3 |
| Receiver sensitivity (max) in OMA (footnote 2) | dBm | -12.6 Notes3 |
| Receiver Reflectance (max) | dB | -12 |
| Stressed receiver sensitivity (max) in OMA2 | dBm | -10.3 |
| Vertical eye closure penalty (min)3 | dB | 2.2 |
| Stressed eye jitter (min)2 | UIp-p | 0.7 |
| Receive electrical 3dB upper cutoff frequency (max) | GHz | 12.3 |
| Receiver power (damage, Max) | dBm | 1.5 |
| Notes:
1. The optical power is launched into SMF 2. Measured with a PRBS 231-1 test pattern@10.3125Gbps 3. Measured with a PRBS 231-1 test pattern@10.3125Gbps BER≤10-12 4. In G.652 and G.655(NDSF) |
||
Description
Features
- Supports rate from 1.25 Gb/ to 10.3 Gb/s bit rates
- Optical interface compliant to IEEE 802.3ae
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- 1310nm DFB transmitter, PIN photo-detector
- Operating case temperature:
Commercial : 0 to 70 °C
Industrial: -40 to +85°C - Low power consumption
- Applicable for 10km SMF connection
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
- RoHS6 compliant (lead free)
