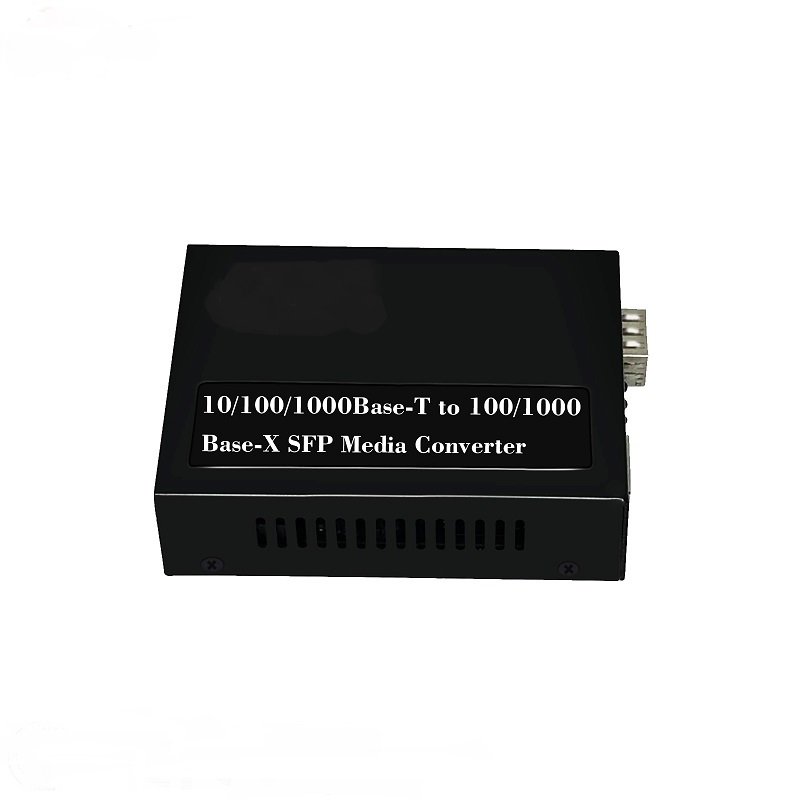

10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter with Built-in Power Supply
Model: FSN-3012-SFP
FSN-3012-SFP Series is equipped with one 10/100/1000BASE-T RJ45 copper and one 100/1000BASE-X SFP fiber optic interface with built-in power supply. The media converter fulfills 100/1000M auto-sensation at fiber optic port, which increase the flexibility of the whole network. The SFP slot of the FSN-3012-SFP is compatible with 100BASE-FX and 1000BASE-SX / LX / WDM through SFP fiber-optic transceivers.
Customer can easily migrate from 100M fiber to Gigabit without changing customer premise equipment (CPE). Start using the FSN-3012-SFP in your current 100M infrastructure. When you are ready to move to Gigabit Ethernet, only change the central switch and all the FSN-3012-SFP will automatically adjust to Gigabit speed. This cuts the number of customer visits in half and reduce installation cost with 50%. No need for proprietary equipment, it is compatible with you existing Ethernet products and follows all the accepted standards.
Description
Features
- 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
- 1 SFP interface, 100/1000BASE-X dual mode (auto detection)
- IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet standard compliant
- Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- 9K jumbo frame size support
- LFP function support
- Supporting low-time lag transmission
- Built-in Power Supply
- Extremely low power consumption (less than 3W), reliable and stable performance
Technical Indexes
Hardware Specifications | |
Copper Interface | 1 x 10/100/1000BASE-T RJ45 TP |
Auto-MDI/MDI-X, auto-negotiation | |
Fiber Optic Interface | 1 x 1000BASE-SX/LX/BX SFP interface. |
Compatible with 100BASE-FX SFP | |

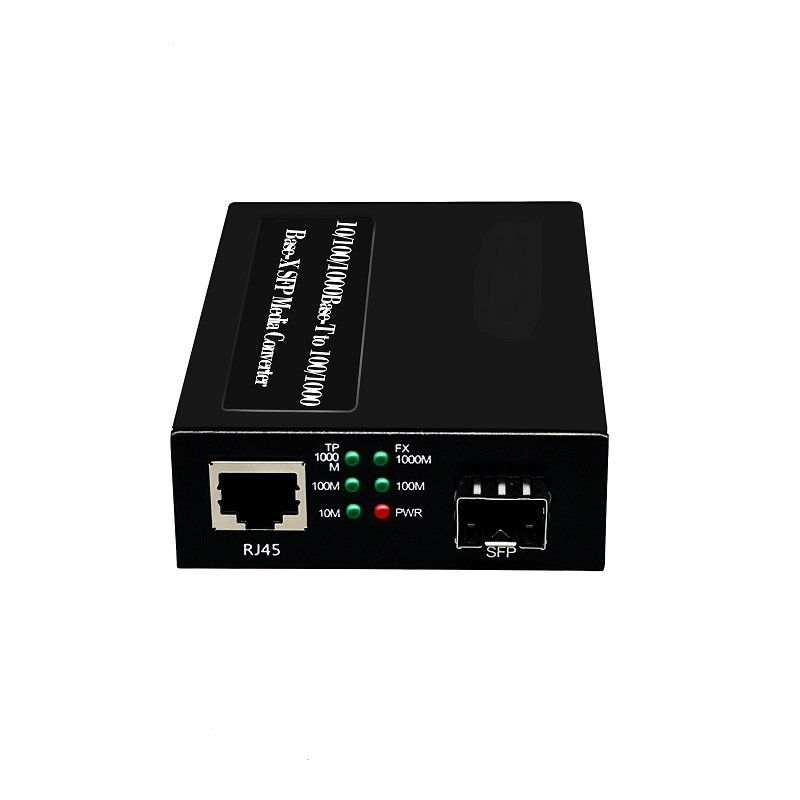

LED | ■ TP: 10M |
■ TP: 100M | |
■ TP: 1000M | |
■ FX: 100M | |
■ FX: 1000M | |
■ PWR | |
Dimensions (W x D x H) | 71 x 94 x 26 mm |
Weight | 200g |

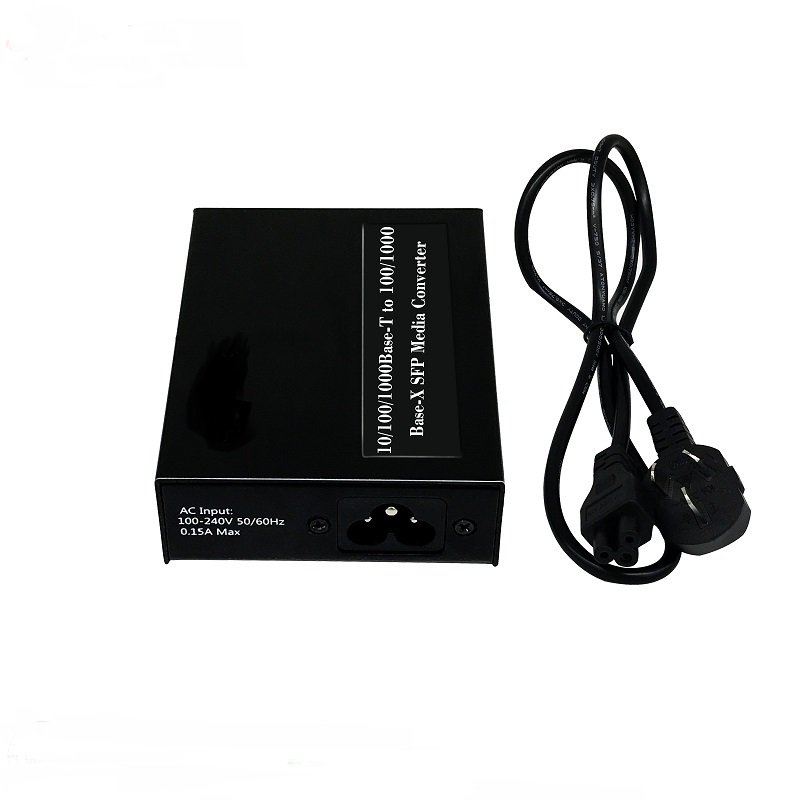

Power Requirements | AC 100-240V 50/60Hz 0.15A Max |
Power Consumption / Dissipation | <3W |
Network Cables | 10/100/1000BASE-T: |
Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) | |
EIA/TIA-568 100-ohm STP (100 meters, max.) | |
1000BASE-SX: | |
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module) | |
1000BASE-LX: | |
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/60/70/120 kilometers (varying on SFP module) | |
100BASE-FX: | |
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to | |
2 kilometers (varying on SFP module) | |
9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (varying on SFP module) | |
Standards Conformance | |
Standards Compliance | IEEE 802.3 10Base-T |
IEEE 802.3u 100Base-TX | |
IEEE 802.3ab 1000Base-T | |
IEEE 802.3z 1000Base-SX/LX | |
IEEE 802.3x Flow Control | |
Regulation Compliance | CE, RoHS and FCC |
Environment | |
Temperature | Operating: 0~50 degrees C |
Storage: -10~70 degrees C | |
Humidity | Operating: 5~95% (non-condensing) |
Storage: 5~95% (non-condensing) |
