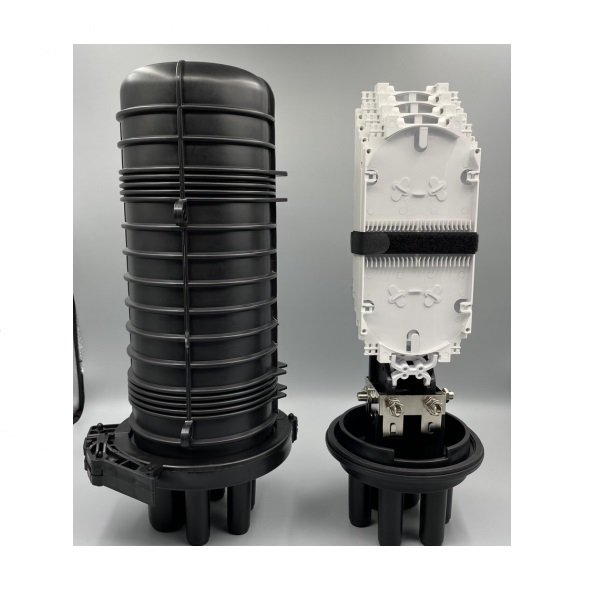

1 in 4 out Heat Shrink Sealing 192 Core Dome Fiber Optic Splice Closure (Model: FSN-F107H-192)
Description:
FSN-F107H-192 Optical splitter closure provides space and protection for the fiber optic cable splicing and joint.
Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.
Description
Features:
1). High quality PC, ABS, PPR material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.
2). Solid structure, perfect outline, thunder, erosion and adding resistance.
3). Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.
4). Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.
5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.
Configuration:
|
Product Name
|
optic splice closure/joint box
|
|
structure
|
dome Vertical Heat Shrink Sealing
|
|
Material
|
PP
|
|
Dimension (mm):
|
470mm*205mm
|
|
Max Capacity
|
192Core
|
|
Maximum install tray Number
|
6
|
|
Ports
|
1 inlet 4 outlet
|
|
Suitable Dia of cable
|
4 small round ports(21mm) and 1 large oval port(65mm) |
Application
Technical Indexes
Standards: HDMI 1.3; HDCP 1.2
Compressed format: H.264
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution Max: 1920X1080p@60Hz
Connector: HDMI-A
Impedance: 100Ω
Interface: 3.5mm earphone seat
Signal direction: Unidirectional
Signal type: Digital
IR frequency: 20-60kHz
Interface: RJ45
Transmission distance: CAT6—200M
Power supply: POE power supply 5V IN
Power dissipation: MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension: 95.25*71.2*26.6mm
The warranty: 1 year free warranty
Panel Transmitter
Receiver
HDMI IN/HDMI OUT: HDMI signal input/output
UTP: Ethernet RJ45 interface
IR IN / IR OUT: IR input / IR output
RESET: Press for 5 second to restore system setting to factory default
LED indicator: Description
PWR: Power indicator, ON: power is normal
LINK: Link status indicator, ON: link is normal
STATUS: Video signal connection indicator, Flashing slowly: system run normally, Flashing quickly: system communicate
